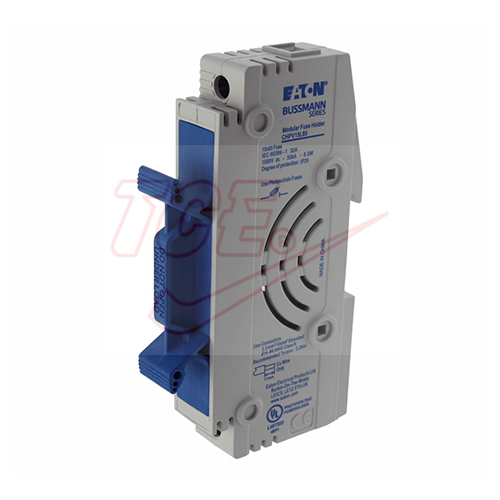

Fuse Holder (Size10x85)

Eaton’s Bussmann® series 10 x 85 mm fuse holder is suitable for use with 10 x 85 mm and 14 x 85 mm cylindrical gPV fuse links.

Rated voltage: 1500 V d.c.
•Rated current: 32 A for IEC and UL
•Rated isolation voltage Ui: 1500 V
•Rated impulse withstand voltage Uimp: 12 kV (tested at 18.5 kV)
•Rated breaking capacity Icc: 50 kA
•Suitable for fuse links with permitted rated power dissipation up to max 8.5W
•RoHS Compliant
•Mounting on 35 mm DIN-Rail
•Degree of protection: IP20
