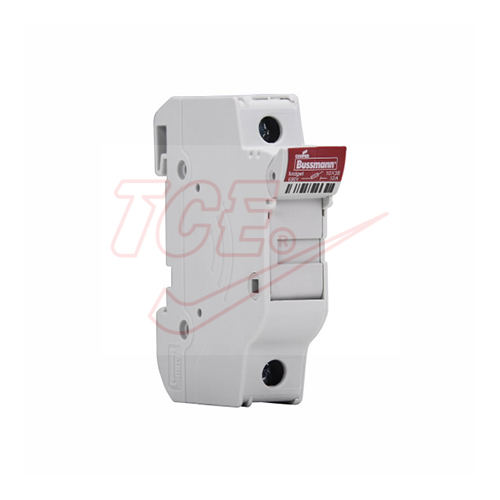

Fuse holder (Size10x38)

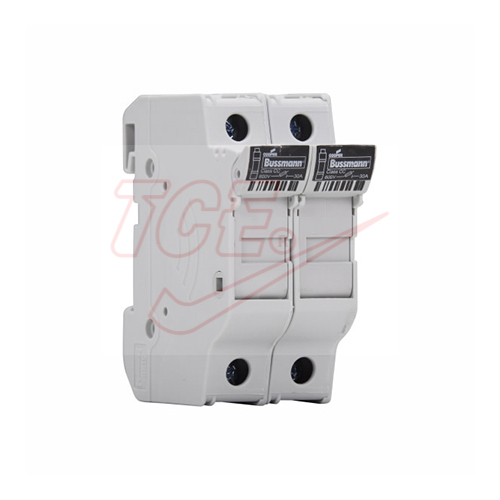

Eaton’s Bussmann™ series CH DIN-Rail fuse holders are for UL Class CC and supplemental fuses, and IEC 10×38 fuses. They are available
with and without indication in 1-, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

Ratings
•Volts: 600 V (or less) UL
        690 V (or less) IEC
        1000 Vdc (or less) photovoltaic (PV)
•Amps: 30A UL , 32A IEC
•Short-Circuit Current Rating (SCCR)
•33 kA photovoltaic
•200 kA RMS Sym. (CHCC, CHM*)
*CHM SCCR is fuse interrupting rating dependent.

Agency information

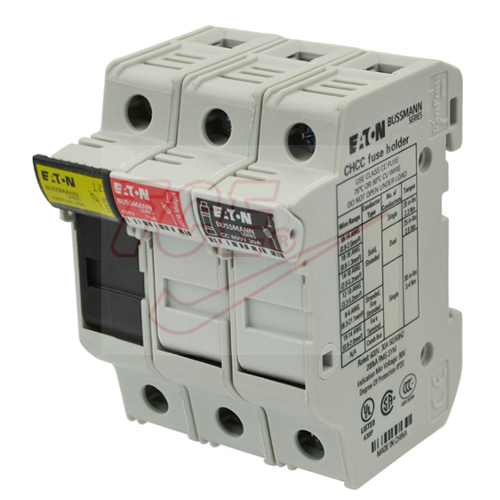

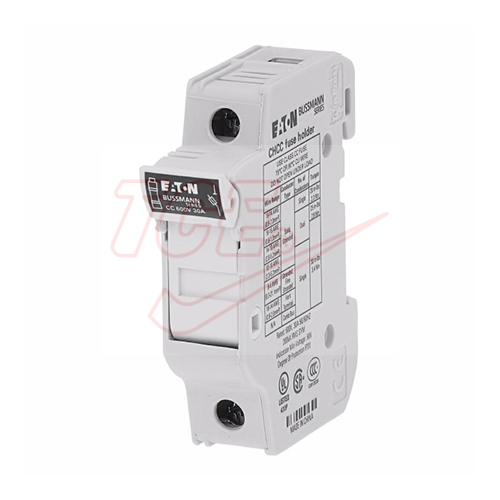

•CHCC - Class CC version: UL Listed, File E14853, Guide IZLT

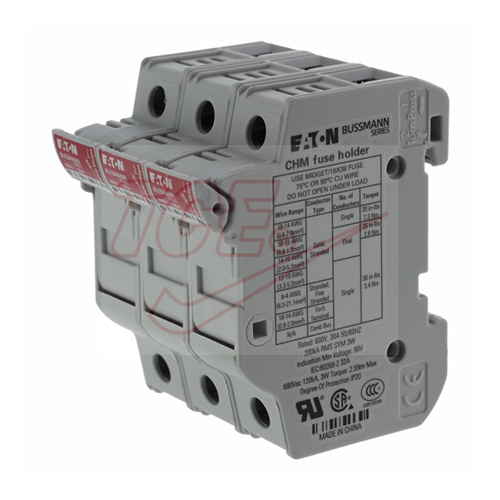

•CHM - Supplemental fuse version: UL Recognized, File E14853, Guide IZLT2

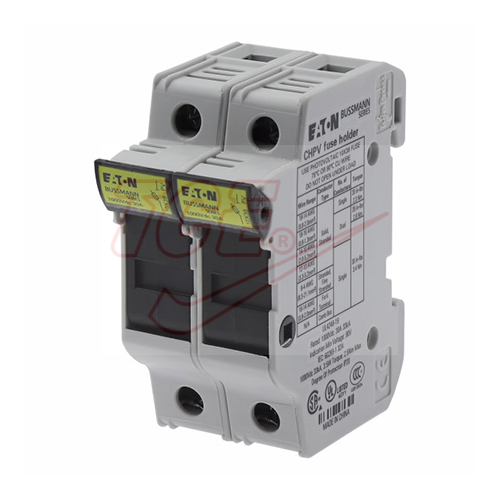

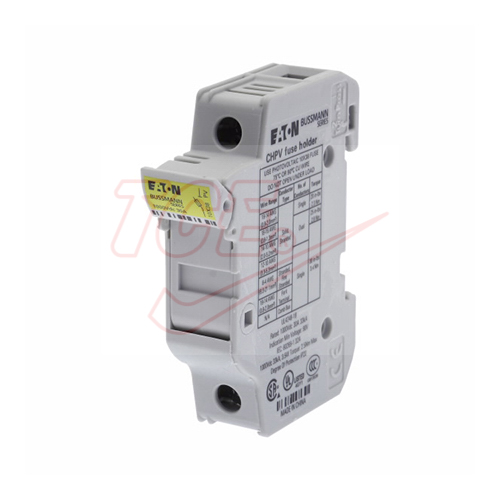

•CHPV - PV version: UL Listed, File E348242, Guide IZMR
•CSA® File 47235, CHPV and CHM - Class 6225-30, CHCC - Class 6225-01
•IEC 60269-2 (CHM, CHPV)
•CCC
•RoHS compliant
